Capabilities
The automatic spray painting machine is used to paint furniture parts, doors, panels and other parts of the suitable dimensions:
Length (max/min), mm – 4,000 / 300
Width (max/min), mm – 1,200 / 5
Height (max/min), mm – 80 / 5
Part weight, max – 75 kg.
DataSheet
Product dimensions
| Min/max length of the painted product | 300/4,000 mm |
|---|---|
| Min/max width of the painted product | 5/1,200 mm |
| Min/max height of the painted product | 5/80 mm |
| Part weight (max) | 75 kg |
Equipment dimensions
| Equipment dimensions (L x W x H) | 5.0 x 4.7 x 2.8 m |
|---|---|
| Equipment weight | ~ 2,500 kg |
Power
| Supply ventilation power | 3.0 kW |
|---|---|
| Exhaust fan power | 3.0 kW |
| Air exchange | 9,800 m³/h |
| Water pump power | 2.2 kW |
| Servo motor | 4.0 kW |
| Total power of the paint booth | 15 kW |
Basic description
| Maximum number of spray guns | 8 pcs. |
|---|---|
| Part feeding | a belt conveyor with a smooth stepless speed control |
| Feed speed | 1-5 m/min. Adjustable during operation. The current speed is shown on the digital display |
| The feed belt | is antistatic, highly resistant to mechanical and chemical exposure |
| Suitable for spraying | of all kinds of paints (PU, PE, UV, NC, water-based materials, etc.) |
Climatic conditions
| Outside temperature, °С | 10-30 |
|---|---|
| Relative humidity,% | 40-70 |
| Sun rays | Sun rays |
Components
| Spray painting machine body | with a supply and exhaust ventilation system, paintwork material recuperation and a hydraulic filter, stainless steel, China |
|---|---|
| Schneider electrical components | Schneider, France |
| PLC, frequency controller | Matsushita, Japan |
| pneumatic system | Yadeke, Taiwan |
| Auto paint spray gun | DURR, ECO GUN AA Auto, 4 pcs., Germany |
| Piston pump | DURR, ECO PUMP VP, 1 pc., Germany |
Technical features
4 spray guns – a basic set
Optional installation of 4 additional spray guns, if necessary (maximum 8 pcs.)
Supply and exhaust ventilation system
3-stage air purification: pre-filter, fine filter, hydraulic filter.
System for automatic recognition of a part’s position and size
Allows to determine the size and position of the product.
Pull-out recuperation unit
Minimizes the spray booth setting time when changing the paint type and completing the work.
Stainless steel hydraulic filter
Especially effective in high-capacity painting.
Automatically adjusted paintwork material recuperation system
Allows to collect the paint sprayed on a belt in a container for possible reuse.
A wide, upwardly-opening glass door
Convenient controls facilitate the control of painting and maintenance of equipment.

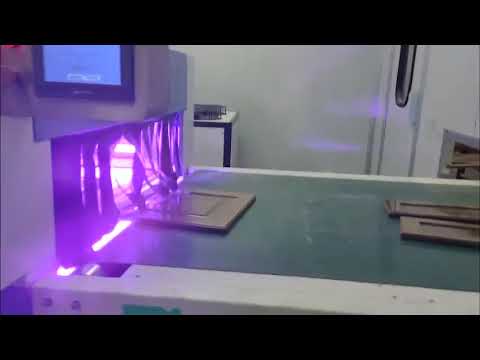

OneTech UV painting line
Complete enamel coating.
The automatic painting line consists of the following equipment:
+ Belt conveyor
+ Automatic spray painting machine
+ Laminar flow tunnel
+ UV dryer
+ Roller conveyor
OneTech UV painting line
Transparent varnish coating.
The painting line consists of:
+ Belt conveyor
+ Automatic spray painting machine
+ Laminar flow tunnel
+ UV dryer
+ Roller conveyor

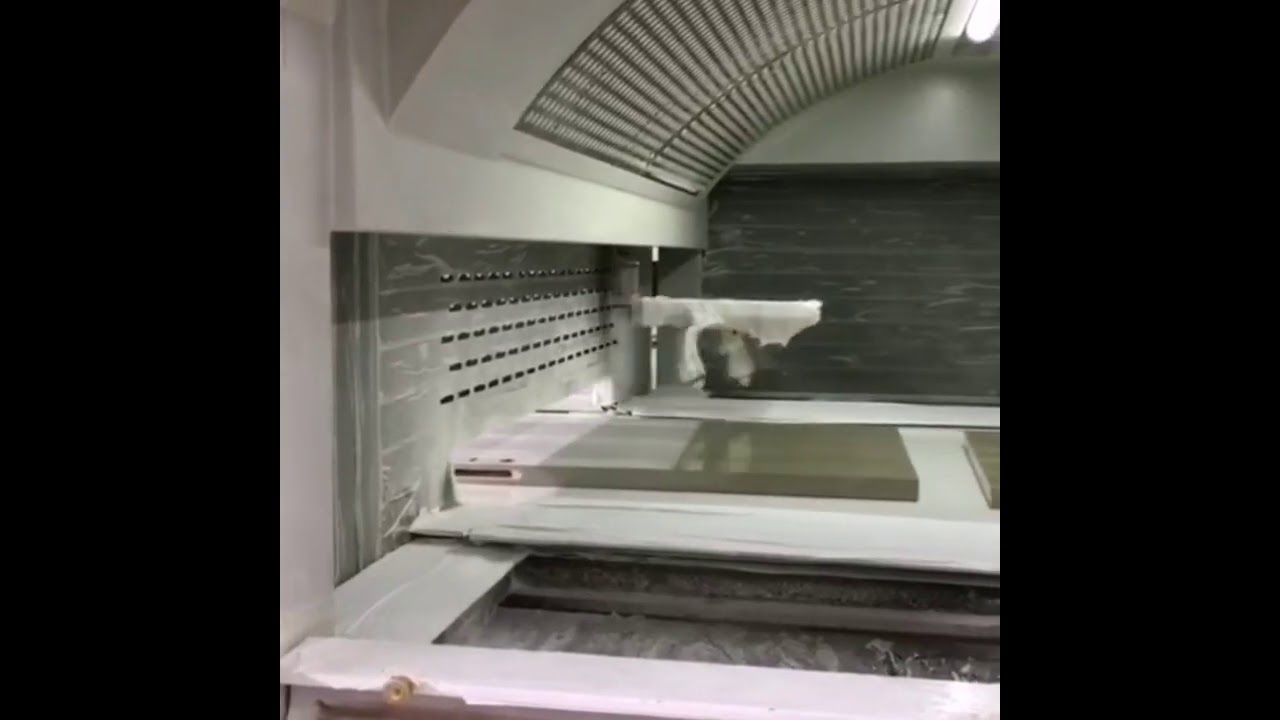

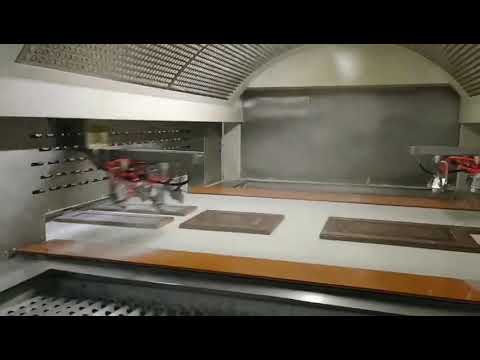

Example of door painting with the use of OneTech line

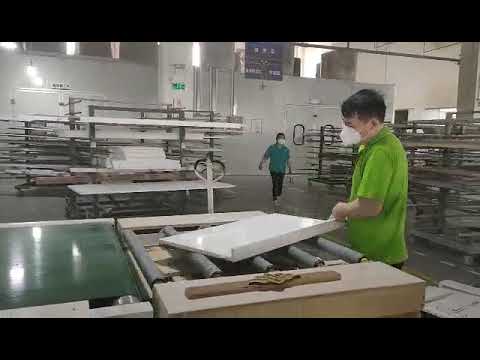

A line for painting of furniture parts, panels, doors. For application of solvent or water-based paintwork materials.

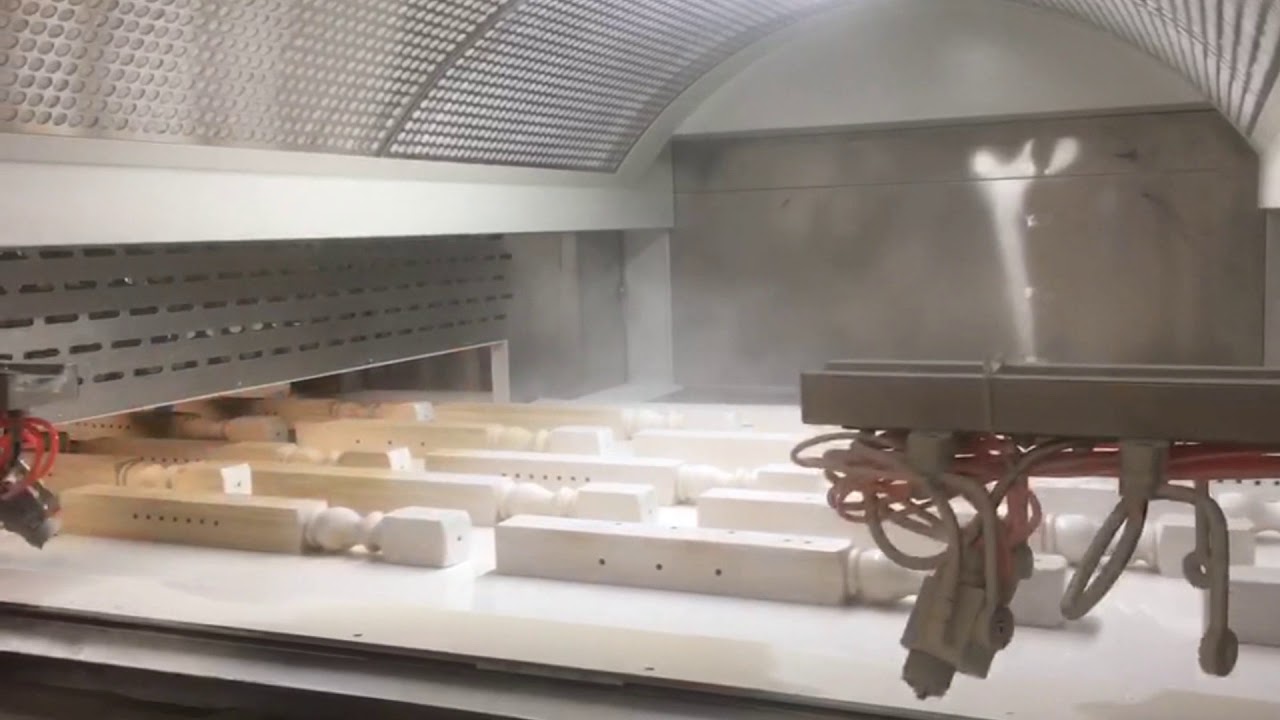

Example of painting of decorative furniture balusters
using ONE TECH automatic machine

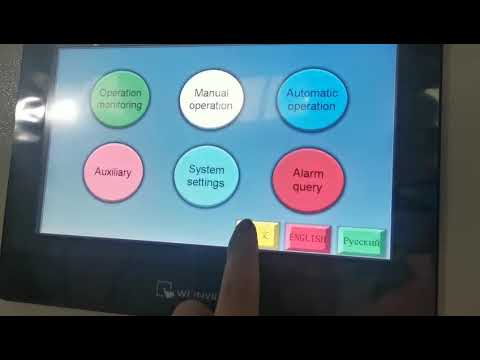

Control panel of the ONETECH universal painting machine
We will program the ONETECH in your comfortable language

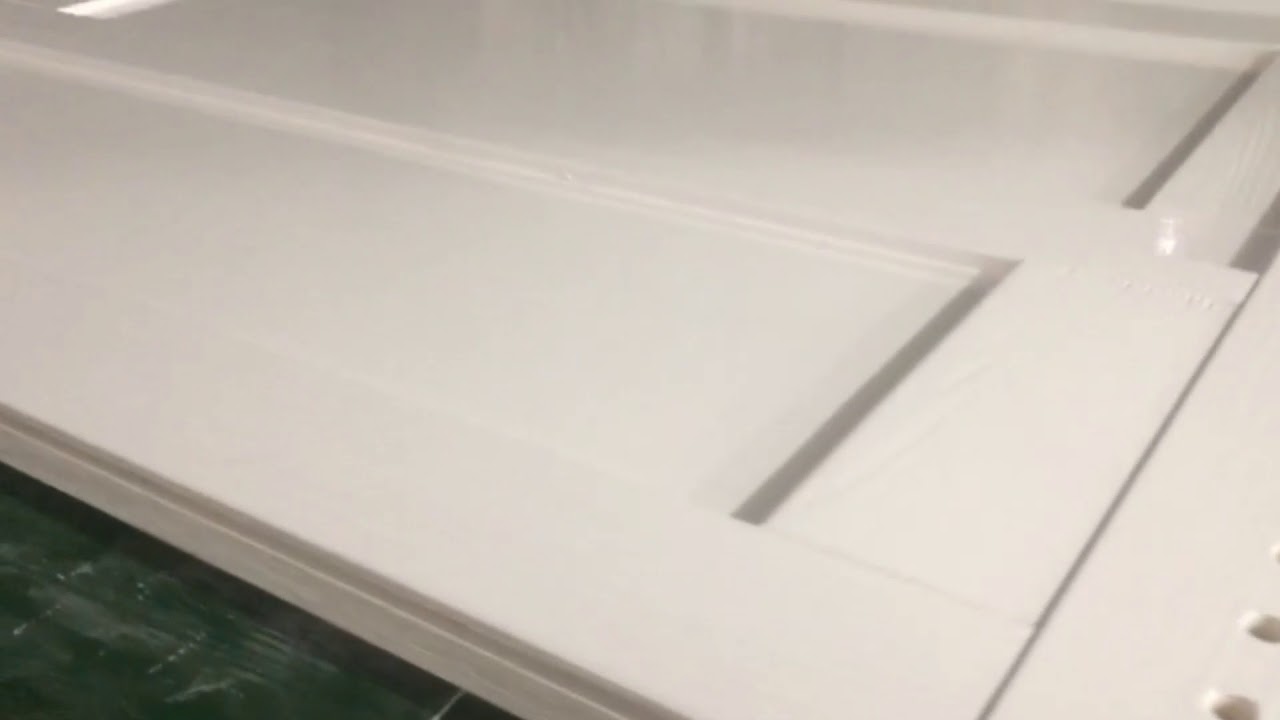

Painting with nitro enamel
Example of an automatic paint line for painting with nitro enamel

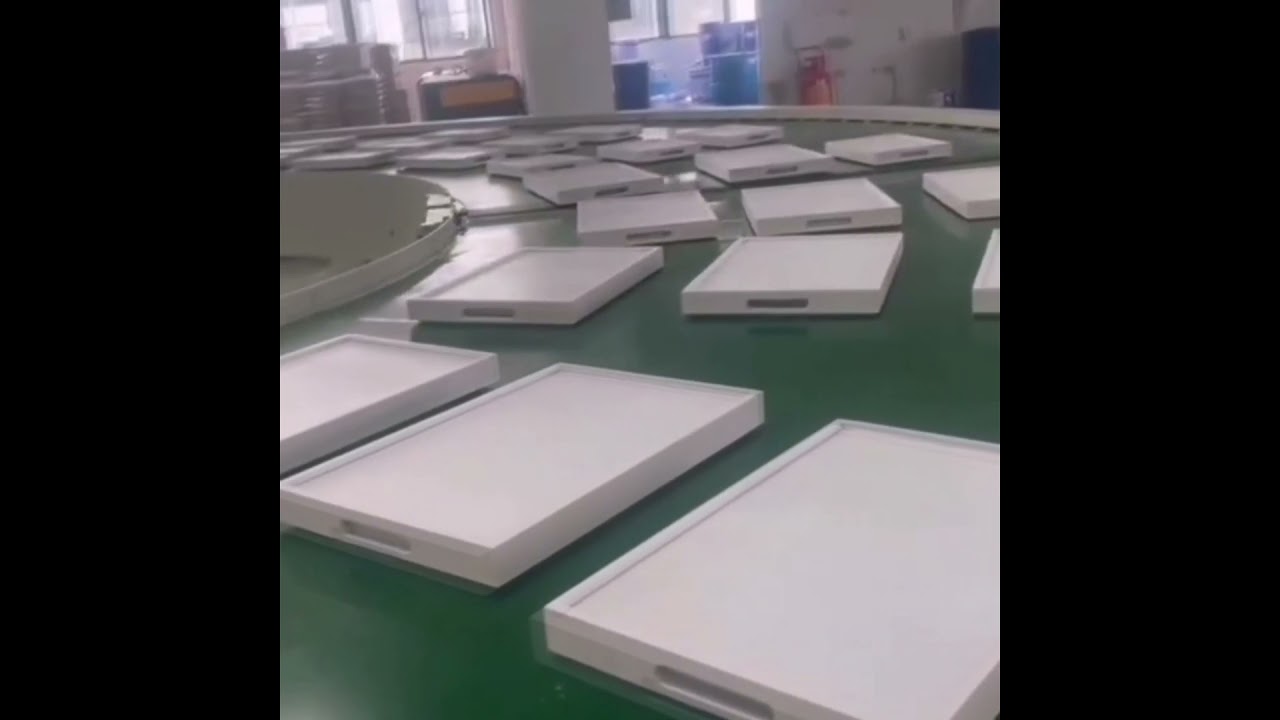

Painting line for high-gloss fronds

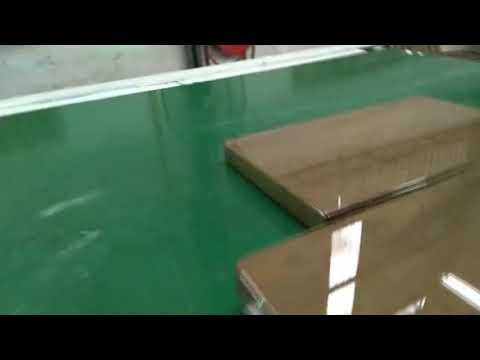

Automatic painting and drying of high-gloss fronts

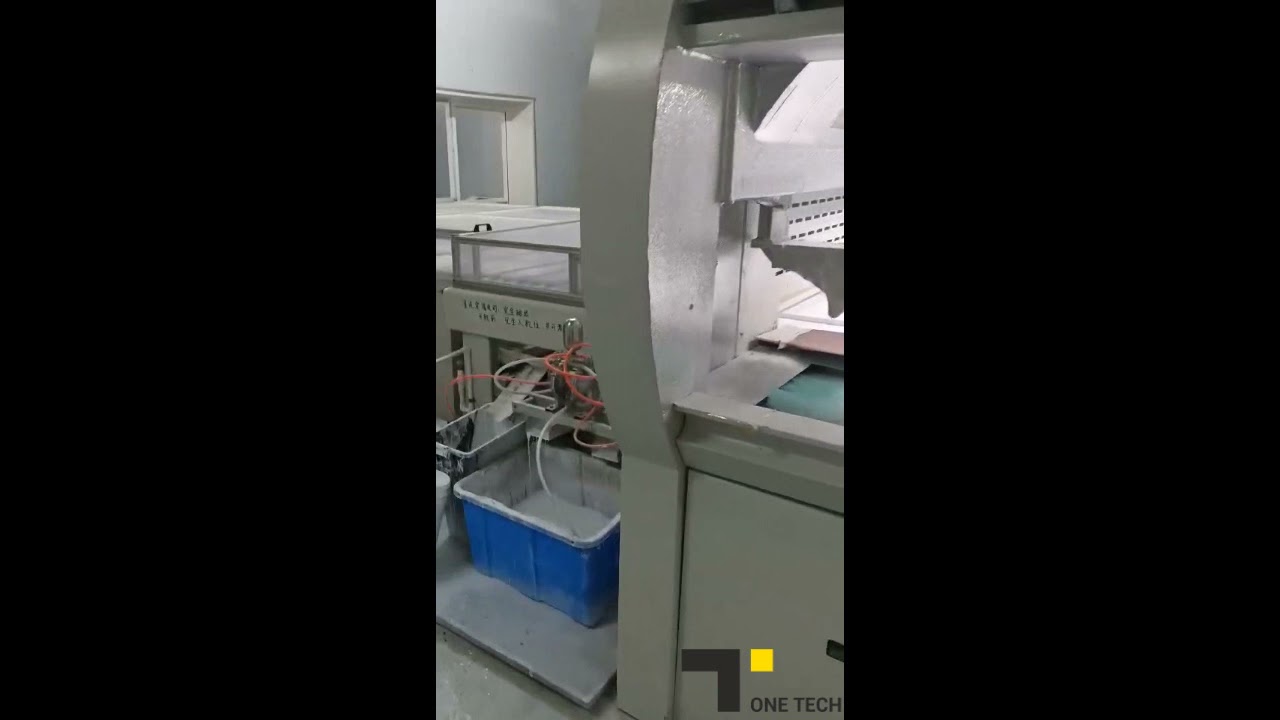

Assemble One Tech automatic Assemble One Tech automatic UV painting line
Spray painting machine.
Spray painting machine + Brush machine.
Spray painting machine + Brush machine and conveyor belt.
Spray painting machine + brush machine, belt conveyor and laminar flow tunnel (spreading).
Spray painting machine + brush machine, belt conveyor, laminar flow tunnel (spreading) and UV drying.
Drawing of an automatic painting line (turnkey solution).
Advantagesof ONE TECH equipment
Efficiency
Increased painting efficiency of your product (furniture parts, doors, panels or other products)
Saving
Saving of paintwork materials
Speed
Continuous application and flexible spray gun setting
Process automation
Consistently high quality of the finished product compared to manual painting
Quality
German spray technology
Labour automation
Only two employees are necessary for a simple operation – loading and unloading of the spray painting machine
