Capabilities

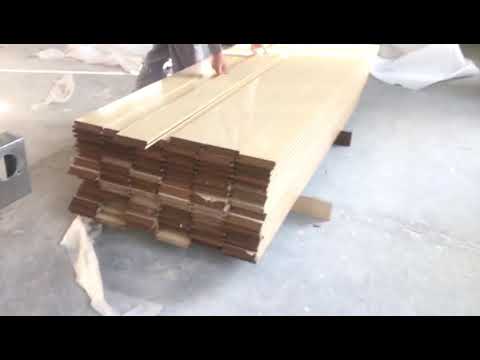

Automatic painting machine to paint moldings such as door trim, door and window frame parts, narrow panels and other parts that match the dimensions:
- Width 70-300 mm (opening width = 400 mm)
- Height 5-80 mm
- Minimum part length 600 mm
DataSheet
Product dimensions
| Min/max length of the painted product | ⩾ 600 mm |
|---|---|
| Min/max width of the painted product | 70-300 mm |
| Min/max height of the painted product | 5-80 mm |
Equipment dimensions
| Equipment dimensions (L x W x H) | 6,4 × 2,3 × 2,2 m |
|---|---|
| Equipment weight | ~1000 kg |
Power
| Conveyor drive | 0,75 kW |
|---|---|
| Ventilation power | 3,3 kW |
| Water pump power | 0,75 kW |
| Total power of the paint booth | 5 kW |
Basic description
| Conveyor speed | 10-15 m/min. Regulated during operation, the value of the actual speed is shown on the digital display |
|---|---|
| Type of conveyor | Feeder (belt) and diverter (roller) with infinitely variable speed control |
| Conveyor size | 2,5 × 0,65 m (×2） |
| Compressed air inlet pressure | 6 bar |
| Air consumption | 2400 l/min |
| Suitable for spraying | all kinds of paints (PU, PE, UV, NC, water-based materials, etc.) |
Components
| Spray painting machine body | with a supply and exhaust ventilation system and a hydraulic filter, stainless steel, China |
|---|---|
| Schneider electrical components | France |
| Yadeke pneumatic system | Taiwan |
| Pneumatic spray gun | DURR, ECO GUN AS Auto – 6 piece, Germany |
| Diaphragm pump | DURR, ECO PUMP – 1 piece, Germany |
Technical features
six AirAssist spray guns
The machine is equipped with six AirAssist spray guns with the possibility of individual adjustment
Automatically recognizing the position
The processor is using a system for automatically recognizing the position and size of the part (paint zone entrance sensor) and regulating
Adapting to products
The position of the last spray gun is automatically adjusted based on the width of each part.
The ventilation system
The ventilation system directs the excess spray mist to the water floor and a vertical hydraulic filter made of stainless steel.
Positioning of parts
The machine is equipped with rails for correct feeding of parts into the painting area.
Spray painting machine for profile
The parts are fed by conveyors ( inlet and outlet) with infinitely variable speed control.

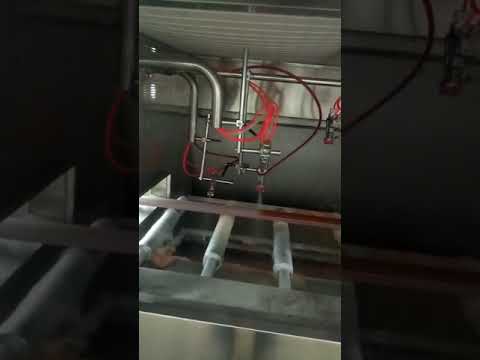

The machine is equipped with six AirAssist spray guns with the possibility of individual adjustment
Spray painting machine for profile
Regulated during operation, the value of the actual speed is shown on the digital display
Suitable for spraying of all kinds of paints such as PU, Pe, UV, NC, water-based materials
Painting UV line for for profile
The painting line consists of:
The automatic spray painting machine
+ Laminar flow tunnel
+ UV dryer
+ Roller conveyor
Assemble ONETECH automatic painting linepainting of profile
Automatic painting machine.
Automatic painting machine + Laminar flow tunnel
Automatic painting machine + Spreading tunnel for a moulding machine
Advantages of the digitally controlled spray painting machinefor painting profiles
Safety
The painting area is closed.
Simplicity
Easy operation and significant reduction of labour costs
PU, Pe, UV, NC
Suitable for spraying of all kinds of paints (PU, PE, UV, NC, water-based materials)
Speed
Accelerates the painting workflow
Efficiency
Increases production efficiency and ensures consistent spray quality.
Labour automation
No human factor
